E906 LCD Super Quick Battery Charger For C D 9V Rechargeable Battery
Universal Household Rechargeable Battery Charger and 4PCS C Batteries
High Technology and Performance
● Recharge or discharge for 1 to 4 pieces of AA/AAA/C/D Ni-MH Ni-Cd batteries; It can charge 1 to 2 pieces of 9V Ni-MH Ni-Cd batteries respectively.

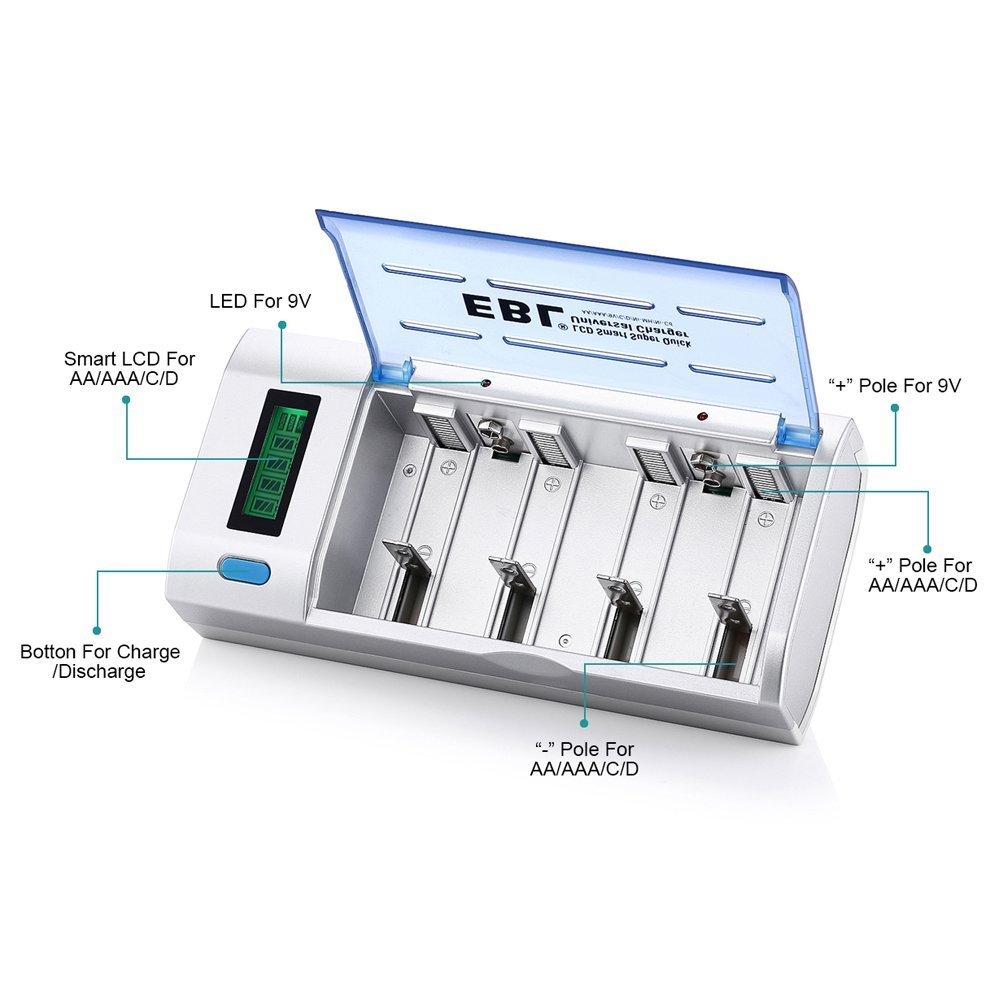

● Unique designed with LCD display screen to indicate the battery(AA/AAA/C/D Ni-MH Ni-Cd batteries) status: Charge, Discharge, Full or Bad. The LED indicators are for 9V Batteries only, when charging 9V batteries, the LED turns red, and turns off automatically when fully charged.
● Press the blue discharge button for the discharge mode. It can automatically turn into charging mode when fully discharged.
With negative delta V (- ∆V) cut-off function (except for 9V batteries) and safety timer control for overcharge protection, short circuit protection, non-rechargeable/bad cell detection etc.
● Intelligent micro processor control: the built-in microcomputer chip will convert the charging mode from fast charging to trickle charging when batteries are almost fully charged to totally guarantee the full charging.
Advanced EBL 906 Smart Charger
EBL E906 battery charger is the latest universal smart battery charger particularly designed for AA/AAA/C/D/9V Ni-MH/Ni-Cd rechargeable batteries. It has both AC and DC plugs, and the smart LCD clearly shows the charging status of each battery (LED for 9V). Besides, this charger can both recharge and discharge the batteries by switching the blue button below the LCD screen. Moreover, the negative delta V (- ∆V) cut-off function gives multiple proection including overcharge protection, short circuit protection and non-rechargeable or bad cell detection, which makes it safe and easy to use overall.
- Input: AC 100-240V AC 50/60Hz,10W; DC 12V 800mA
- Output: AA/AAA/C/D: 1.2V DC x 4 1000mA; 9V: DC x 2 30mA
- No Load Power Consumption: 0.5W MAX
- Full Load power consumption: 10W MAX
- Battery Charge Rate: >95%
Charging Time Table:
Battery Type (Ni-MH) Capacity Charging time (approx.)
AAA 500-1200mAh 1 – 3 hours
AA 1300-2800mAh 1 – 3 hours
C 1800-5000mAh 1 – 5 hours
D 1800-10000mAh 1 – 8 hours
9V 150-600mAh 5-20 hours
